| Standalone Doors Managed | 2 doors |
| Connectable Readers | 2units |
| 485interface | 1 unit |
| Registered Card Capacity | 60,000 |
| Event Log Capacity | 160,000 |
| Dimensions | 11x 9CM |

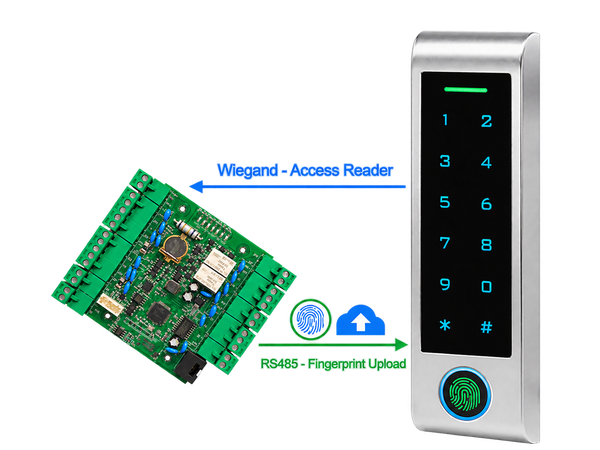

| Communication | TCP/IP,Wiegand, RS485 |
| Circuit Board Power Consumption | Less than 200mA |
| Supported Databases | ACCESS and SQL |
| Multi-Card Access | Requires multiple individuals to swipe sequentially to unlock a door. Configurable for groups and scenarios like bank vaults. |
| First-Card Access | Only authorized "first cards" can unlock a door during specified times (e.g., mornings), after which other cards work. Prevents access if no first-card holder is present. |
| Electronic Map | Place door icons on a digital map for intuitive real-time monitoring. |
| Multi-Door Interlock | Prevents one door from opening if another is open. Essential for banks, vaults. Supports 2, 3, or 4-door interlock. |
| Anti-Passback / Anti-Tailgating | Enforces in/out sequence. Prevents tailgating and card passing. Configurable per door or controller. |
| Super Passcode Access | Up to 4 global passcodes per door for access (no user-specific logging) |
| Passcode Access (One-Person-One-Password) | Set fixed password length (4/6/8 digits), assign password as user's card number, grant access permissions. Permissions can be set for specific doors and time periods. |
| Swipe Card + Passcode Access | Requires card swipe followed by correct password entry. Can be one-card-one-password. Permissions configurable per user/door. |
| Manual Card Number + Passcode Access | No card needed. Enter Card NumberPassword# to open the door, with event logging. |
| Remote Open | Administrator can click "Remote Open" in software to open a specific door remotely. Events can be logged. |
| Forced Door Open/Close | Set doors to be permanently open or closed via software. |
| Inside-Outside Verification | External personnel swipe card(s), internal personnel receive prompt on PC and must swipe a desktop USB reader to grant final access. Suitable for branch visits to headquarters. |
| Fire Alarm Linkage & Unlock | Requires expansion board. Upon fire alarm signal, all connected doors unlock automatically for evacuation. |
| Door Linkage Relay Output | Requires expansion board. Triggers an additional relay when door is legitimately opened (e.g., to turn on lights, signal camera). |
| Swipe to Arm/Disarm Anti-Theft Alarm | Requires expansion board. |
| Duress Alarm | Requires expansion board for hardware alarm. User enters a duress code under coercion, door opens but a silent alarm is triggered at the monitoring center. |
| Door Left Open Alarm | Requires expansion board for hardware alarm. Alerts if a door remains open beyond a set time (requires door magnet sensor). |
| Forced Entry Alarm | Requires expansion board for hardware alarm. Triggers if door is forced open without authorized access. |
| Invalid Card Swipe Alarm | Requires expansion board for hardware alarm. Triggers when an unauthorized card is used. |
| Online Patrol | Configurable patrol routes, times, personnel, and generates patrol reports. |
| Fixed-Quota Meal Management | Manages cafeteria access and charging per meal session, generates detailed reports. |
| Meeting Check-in | Manages meeting registration, real-time attendance display, and generates statistics. |
| Elevator Control | Uses specialized elevator controller. Restricts elevator floor access based on card permissions. |
| Locker Management | Uses specialized locker controller. Assigns lockers via card swipe or other biometrics. |
