S9-RX

Metal Wiegand Reader (E/H/MF)

> Metal Case, anti-vandal
> Waterproof, conforms to IP66
> Wiegand Format:
   EM: 26 bits
   Mifare: 34/58 bits (32/56 bits optional)
   HID: 26 bits
> Card type: Hid card, EM card & Mifare card (4 bytes or 7 bytes)
> Reading range: 3~8cm
> External LED Control & External Buzzer Control
The S9-RX reader is an advanced 125KHz & 13.56MHz technology proximity reader.
Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in harsh environment.
Operating Voltage
9~18V DC
Frequency
125KHz & 13.56MHz
Card Type
125KHz - EM & Hid Card
13.56MHz - Mifare Card (ISO 14443A Compatible)
4 bytes or 7 bytes
Reading Distance
3~8 CM
Output Format
EM: Wiegand 26 bits
Mifare: Wiegand 34/58 bits (32/56 bits optional)
HID: Wiegand 26 bits
Operating Temperature
-40°C ~ 60°C (-40°F ~ 140°F)
Standby Current
< 25mA
Operating Humidity
10%~98% RH
Index of Protection
IP66

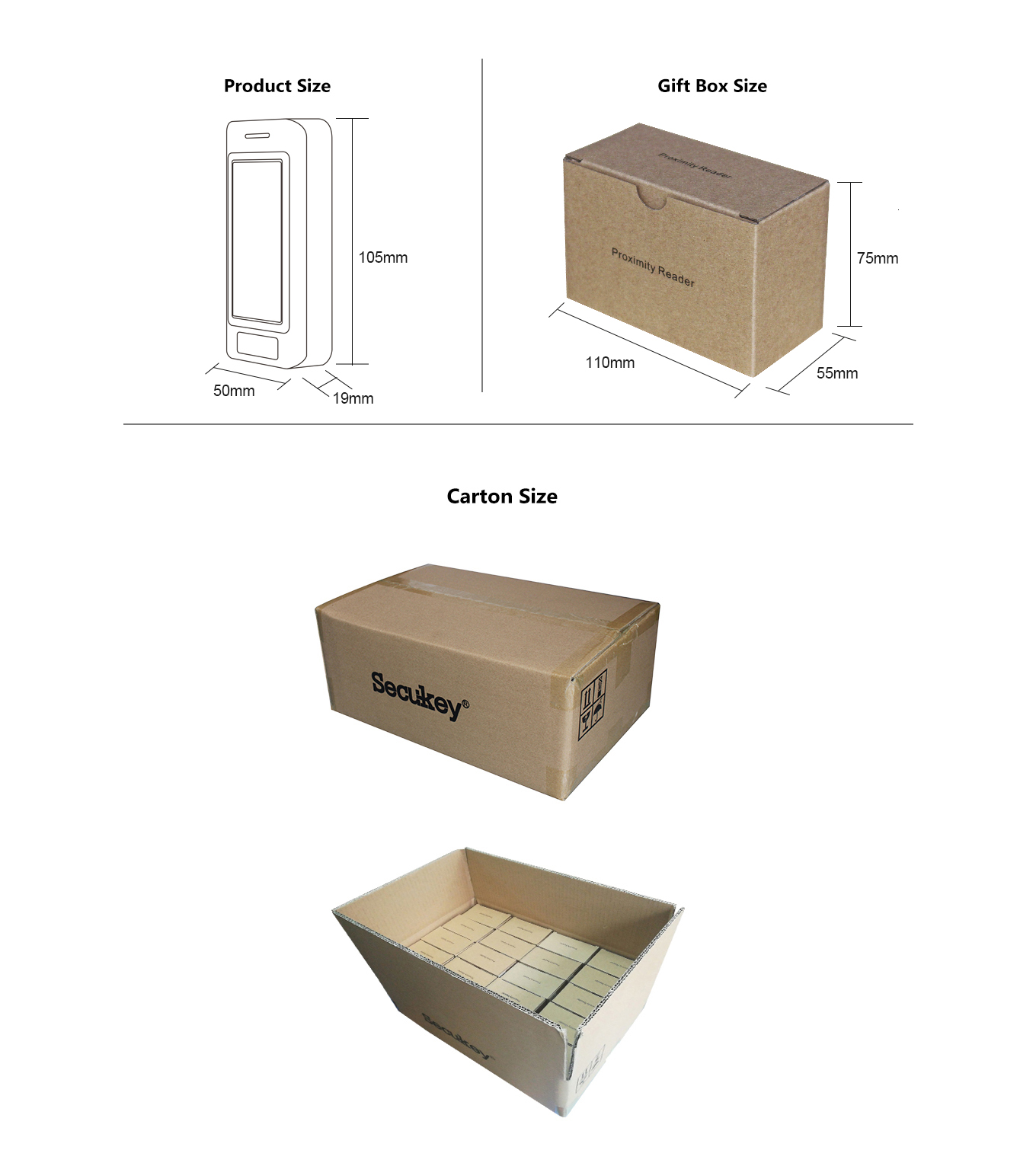

Dimensions
L105 x W50 x H20 (mm)
