S9-R MF

Metal Wiegand Reader (Mifare)

> Metal Case, anti-vandal
> Waterproof, conforms to IP66
> Wiegand 34/58 bits output (32/56bits optional)
> Card Type: 13.56MHz NXP Mifare, Mifare Plus, DesFire,
Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards
> Reading range: 3~8cm
> External LED Control & External Buzzer Control

The S9-R (MF) reader is a metal case anti-vandal proximity reader.

Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.

Operating Voltage	9~18V DC
Frequency	13.56MHz
Card Type	13.56MHz - NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards (identifies UID 7bytes / 4 bytes)
Reading Distance	3~8 CM
Output Format	Wiegand 34/58 bits
Output Format	(32/56 bits available upon request)
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Standby Current	< 25mA
Operating Humidity	10%~98% RH
Index of Protection	IP66

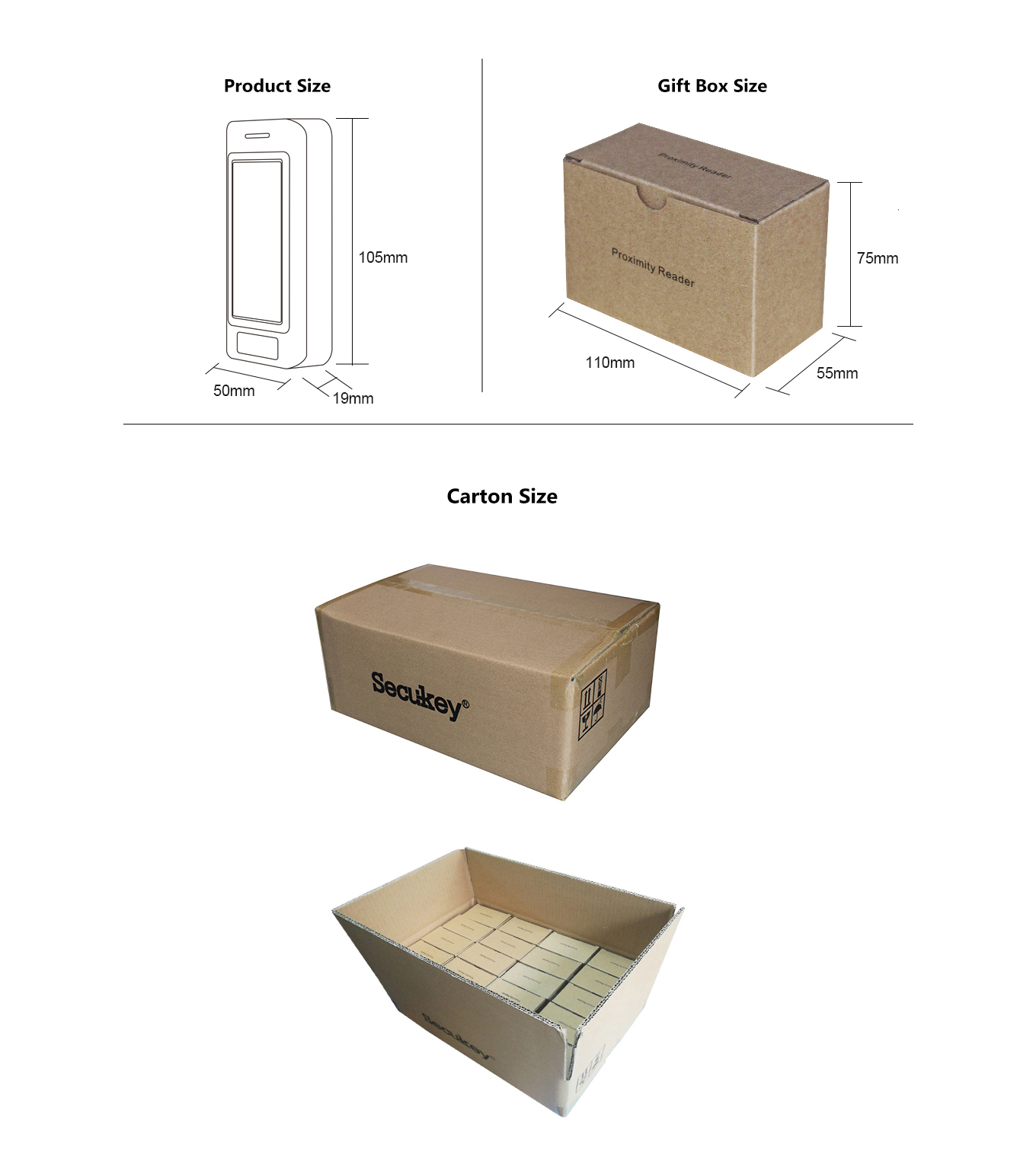

Dimensions	L105 x W50W x H20 (mm)
