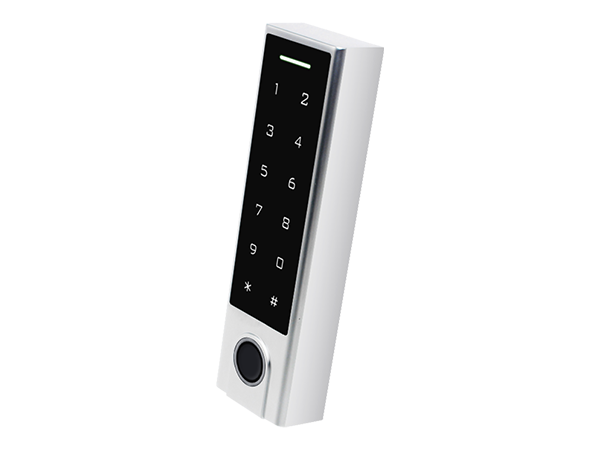

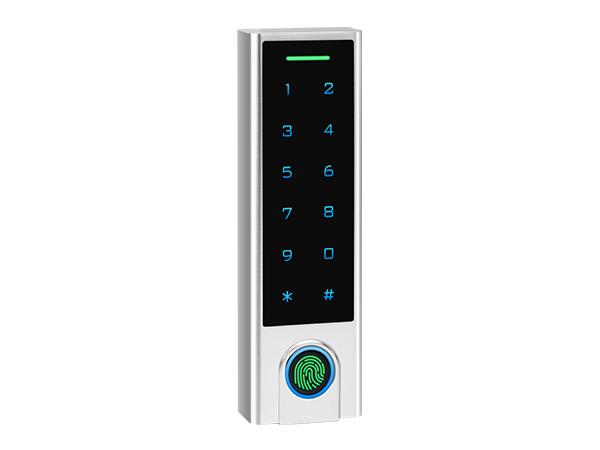

HF3-R
Wiegand&RS485 Fingerprint Reader

> Metal housing, touch keypad

> Waterproof, conforms to IP67

> Wiegand & RS485 dual communication interface

> Wiegand 26~58 bits output

> 500 fingerprints capacity

> Support EM+Mifare cards

> Adjustable keypad transmission format

> External LED & buzzer control

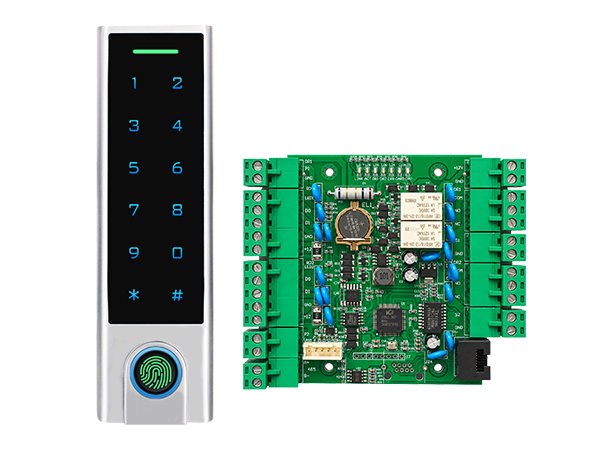

> Works with Secukey RS485 controller for fingerprint enroll & transmission


This IP67 waterproof metal keypad fingerprint reader integrates EM and Mifare card reading,

supports Wiegand&RS485 protocols, stores up to 500 fingerprints, and works reliably for indoor & outdoor tough scenarios.


Frequency	125KHz & 13.56MHz
Card Type	EM + Mifare Cards
Fingerprint Capacity	500
Reading Range	2~4cm
Reading Speed	<0.5s
Standby Current	≤50mA
Working Current	≤150mA
Operating Voltage	12~18V DC
Communication Interface	Wiegand Output: 26~58 bits Bi-directional RS485, Baud Rate: 57600 (Fixed)
Keypad Transmission Format	4bits (factory default) 8bits or virtual card number format can be set
Operating Temperature	-30℃~60℃
Operating Humidity	0% RH ~ 98% RH
Physical	Zinc-Alloy
Color	Silver & Black
Index of Protection	IP67

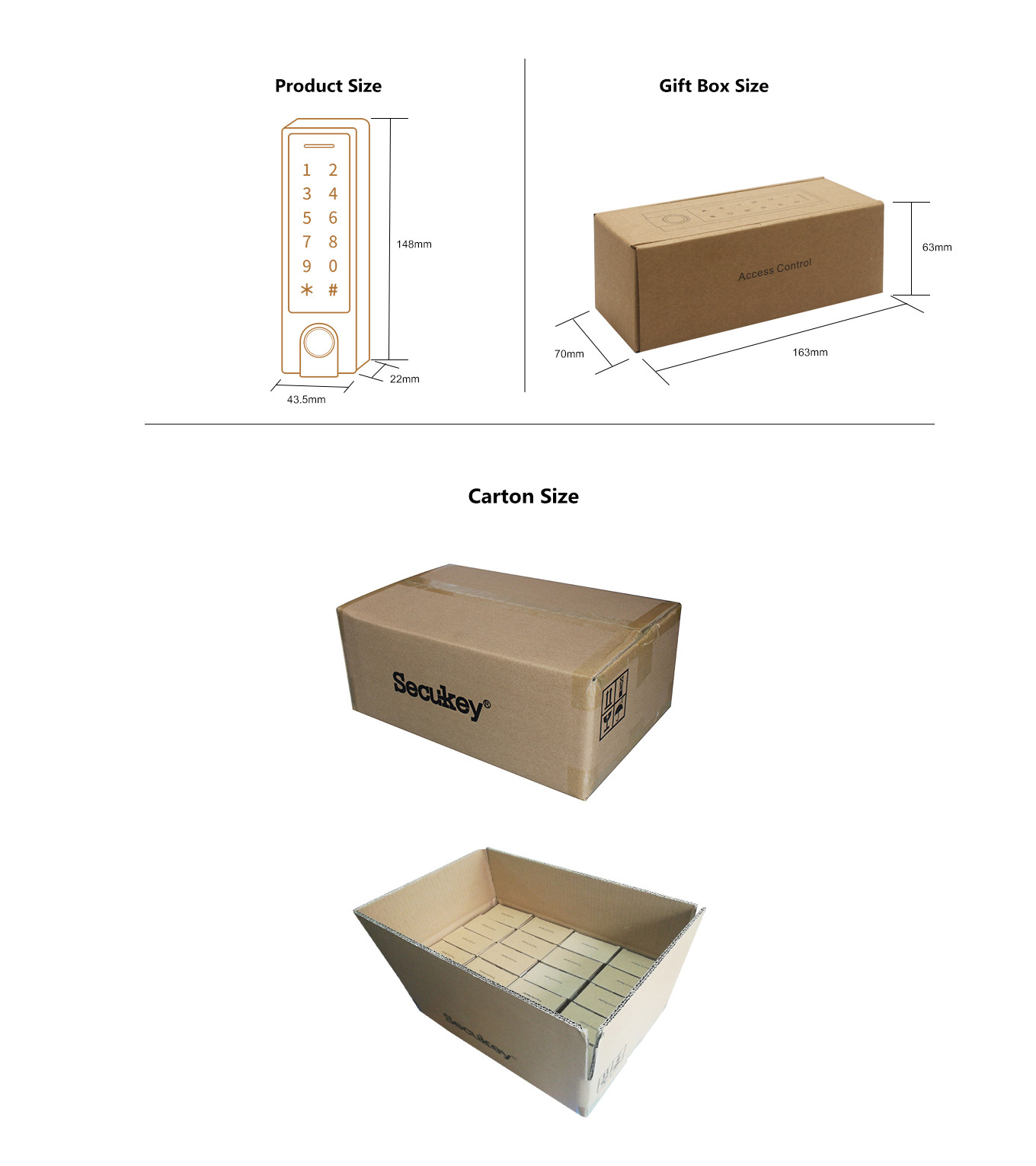

Dimension	L148 x W43.5 x D22mm
Net Weight	330g
Shipment Weight	405g

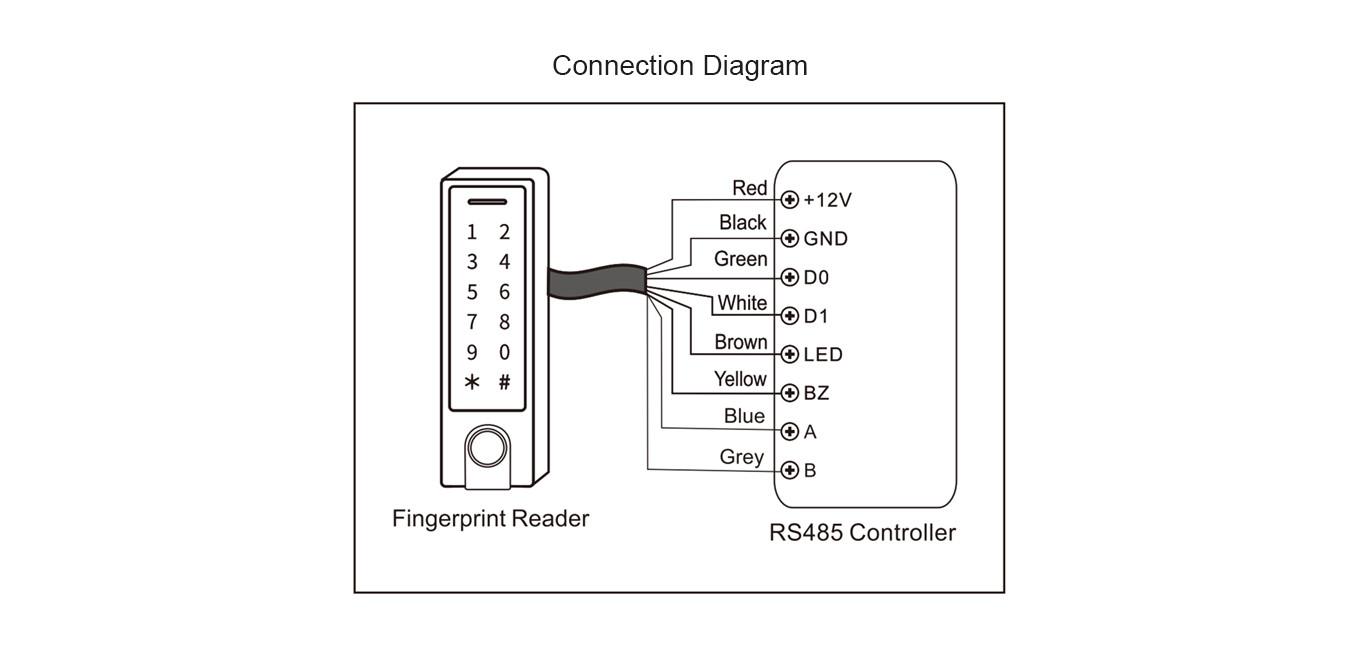

HF3-R 接线图.jpg
